35kV Oil Immersed Power Transformer
35kV Oil Immersed Power Transformer
35kV Oil Immersed Power Transformer is designed for reliable power transmission and transformation in 35kV power systems. Developed based on advanced transformer technology, the product is designed for urban and rural power grid transformation and is suitable for applications requiring stable operation, low losses and reliable electrical performance. The transformer is manufactured according to the technical requirements of oil-immersed power transformers and is designed with a focus on safety, reliability and economy.
With a rated frequency of 50Hz, this transformer series is suitable for 35kV power transmission and transformation systems, including urban power grid reconstruction, industrial and mining enterprises, and 35kV substations. The optimized design provides low loss and low noise performance while supporting reliable operation under demanding power system conditions. The catalog also notes its suitability for remote voltage regulation applications where required.
Share With:
Description
The 35kV Oil Immersed Power Transformer is a high-voltage transformer designed for power transmission and transformation in medium- and high-voltage electrical networks. It is developed for applications where stable power delivery, reliable insulation performance and efficient operation are required. The transformer is suitable for both urban and rural power grid applications and can be used as a main transformer in 35kV substations and industrial power systems.

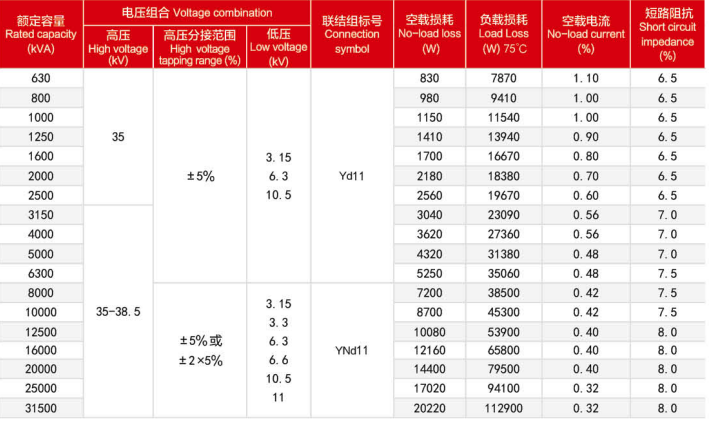

The product series operates at 50Hz and provides multiple voltage and capacity configurations to meet different project requirements. According to the catalog, the available configurations include 35kV and 35–38.5kV high-voltage combinations, with low-voltage options including 3.15kV, 3.3kV, 6.3kV, 6.6kV, 10.5kV and 11kV. Rated capacity options in the technical table extend up to 31,500 kVA.
The transformer is designed with an optimized core, winding and oil-insulated structure to achieve reliable electrical performance while reducing operating losses and noise. Its configuration can be selected according to the required voltage combination, capacity, tapping range and connection group.
It is particularly suitable for 35kV substations, urban power grid reconstruction, industrial and mining enterprises and other power transmission and distribution applications. For projects with specific electrical requirements, the transformer configuration can be further confirmed according to the customer’s voltage, capacity and system requirements.
Technical Parameters & Features
Transformer Type
35kV Oil Immersed Power Transformer
Rated Voltage
35kV
Frequency
50 Hz
Rated Capacity
Up to 31,500 kVA
HV Tapping Range
±5% or ±2×2.5%
High Voltage
35kV / 35–38.5kV
Low Voltage
3.15 / 3.3 / 6.3 / 6.6 / 10.5 / 11kV
Connection Group
Dyn11 / Yyn11 configurations
