Oil-Immersed Amorphous Alloy Distribution Transformer

Oil-Immersed Amorphous Alloy Distribution Transformer

OMEGA supplies three-phase oil-immersed amorphous alloy distribution transformers rated 30–2500 kVA. Listed primary voltage options are 6, 6.3, 10, 10.5 and 11 kV, with a 0.4 kV secondary. The range uses a fully sealed construction; final specifications require engineering confirmation.

Amorphous Alloy Transformer Ratings and Configuration

The published capacity range is 30–2500 kVA. Confirm the selected configuration in the approved datasheet before ordering.

Core material

Amorphous alloy

Rated capacity

30–2500 kVA

Phases

3-phase

Primary voltage options

6 / 6.3 / 10 / 10.5 / 11 kV

Secondary voltage

0.4 kV

Construction

Fully sealed

Voltage regulation

Off-circuit tap changing

HV tapping range

±5% or ±2 × 2.5%

Vector group options

Dyn11 / Yyn0

Request confirmation of frequency, winding material, impedance, losses, dimensions and weight for the proposed unit.

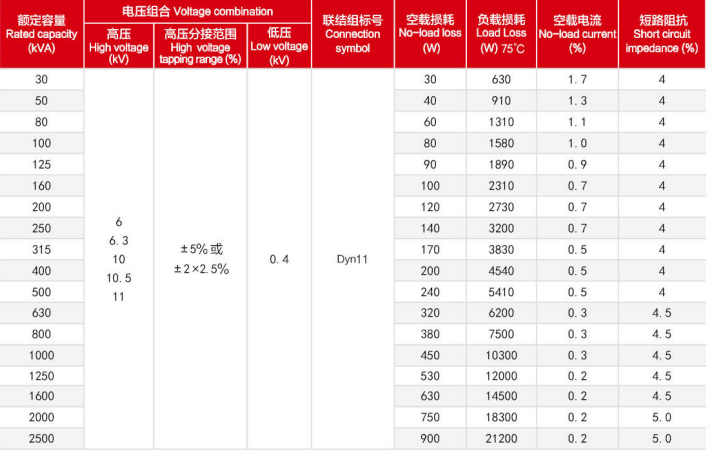

Oil-immersed Amorphous Alloy Distribution Transformer

Documents to Confirm for an 11 kV / 0.4 kV Amorphous Transformer

  • 11 kV / 0.4 kV is one listed voltage combination. Request a datasheet identifying capacity, frequency, vector group, impedance and tapping range.

  • Request no-load and load-loss values for the proposed unit. Any loss-reduction comparison should identify the reference transformer, rating and measurement conditions.

  • Confirm test items, acceptance criteria, report format and any customer witness arrangements before ordering.

Transformer Testing & Technical Documents

Technical Datasheet

Test Requirements

Test Reports

Amorphous Alloy Transformer Procurement FAQ

The published capacity range is 30–2500 kVA.

Yes. 11 kV / 0.4 kV is listed; confirm the ordered configuration.

Dyn11 and Yyn0 are listed; confirm the group before ordering.

No. Total losses also depend on load losses and operating conditions.

Request the unit’s datasheet, loss values and agreed test documentation.

Oil-Immersed Amorphous Alloy Distribution Transformer

OMEGA supplies three-phase oil-immersed amorphous alloy distribution transformers rated 30–2500 kVA. Listed primary voltage options are 6, 6.3, 10, 10.5 and 11 kV, with a 0.4 kV secondary. The range uses a fully sealed construction; final specifications require engineering confirmation.

Amorphous Alloy Transformer Ratings and Configuration

The published capacity range is 30–2500 kVA. Confirm the selected configuration in the approved datasheet before ordering.

Core material

Amorphous alloy

Rated capacity

30–2500 kVA

Phases

3-phase

Primary voltage options

6 / 6.3 / 10 / 10.5 / 11 kV

Secondary voltage

0.4 kV

Construction

Fully sealed

Voltage regulation

Off-circuit tap changing

HV tapping range

±5% or ±2 × 2.5%

Vector group options

Dyn11 / Yyn0

Request confirmation of frequency, winding material, impedance, losses, dimensions and weight for the proposed unit.

Oil-immersed Amorphous Alloy Distribution Transformer

Documents to Confirm for an 11 kV / 0.4 kV Amorphous Transformer

  • 11 kV / 0.4 kV is one listed voltage combination. Request a datasheet identifying capacity, frequency, vector group, impedance and tapping range.

  • Request no-load and load-loss values for the proposed unit. Any loss-reduction comparison should identify the reference transformer, rating and measurement conditions.

  • Confirm test items, acceptance criteria, report format and any customer witness arrangements before ordering.

Transformer Testing & Technical Documents

Technical Datasheet

Test Requirements

Test Reports

Amorphous Alloy Transformer Procurement FAQ

The published capacity range is 30–2500 kVA.

Yes. 11 kV / 0.4 kV is listed; confirm the ordered configuration.

Dyn11 and Yyn0 are listed; confirm the group before ordering.

No. Total losses also depend on load losses and operating conditions.

Request the unit’s datasheet, loss values and agreed test documentation.
