SC(B)18 Dry-Type Power Transformer

SC(B)18 Dry-Type Power Transformer

OMEGA supplies three-phase, 50 Hz SC(B)18 dry-type power transformers with epoxy resin cast insulation. Published specifications include Class F insulation, partial discharge below 10 pC and winding temperature rise up to 100 K. Capacity, voltage ratio and enclosure configuration require confirmation for the proposed unit.

SC(B)18 Transformer Specifications and Configuration

The published frequency is 50 Hz. Confirm the following specifications against the approved datasheet and applicable test requirements.

Model

SC(B)18

Transformer type

Dry-type power transformer

Insulation construction

Epoxy resin cast

Phases

3-phase

Frequency

50 Hz

Insulation class

Class F

Partial discharge

<10 pC; confirm test conditions

Low-voltage winding

Foil winding

Enclosure options

IP00 / IP20 / IP23

Winding temperature rise

≤100 K; confirm test conditions

Provide the required capacity, primary voltage, secondary voltage, vector group, impedance and installation conditions for engineering review.

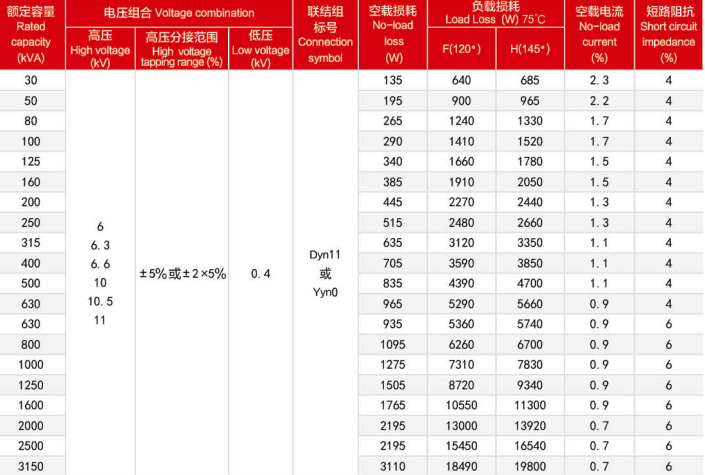

SC(B)18 Dry-type Power Transformer

Documents to Confirm for a 50 Hz SC(B)18 Order

  • Confirm rated capacity, HV/LV voltages, vector group, impedance, tapping arrangement and cooling method in the approved datasheet.

  • For the published <10 pC partial-discharge specification, request the test voltage, procedure, acceptance criteria and applicable report.

  • For the published ≤100 K temperature-rise specification, confirm cooling conditions, ambient conditions and supporting test documentation.

  • Specify the enclosure option and installation environment. Confirm dimensions, ventilation requirements and access clearances before installation.

Transformer Testing & Technical Documents

Technical Datasheet

Test Requirements

Test Reports

SC(B)18 Dry-Type Transformer Procurement FAQ

Class F insulation is listed; confirm the ordered configuration.

Below 10 pC; confirm the test conditions and applicable report.

The published limit is 100 K; confirm the applicable test conditions.

IP00, IP20 and IP23 are listed; select for the installation conditions.

Request engineering review; the published frequency is 50 Hz.

No. Request a separate report covering the proposed configuration.
