SCBH15 Dry-type Amorphous Alloy Core Transformer
SCBH15 Dry-type Amorphous Alloy Core Transformer
The SCBH15 Dry-type Amorphous Alloy Core Transformer is a three-phase dry-type distribution transformer designed for efficient and reliable power distribution in medium-voltage applications. Featuring an amorphous alloy core and epoxy resin cast insulation, it is designed to reduce no-load losses and improve overall energy efficiency during long-term operation. The transformer is available in rated capacities from 30 kVA to 2500 kVA, with 6 kV and 10 kV voltage classes and a 0.4 kV low-voltage configuration.
The SCBH15 combines low-loss operation, low noise, strong insulation performance and high mechanical strength in a compact dry-type design. Its epoxy resin encapsulation provides good resistance to moisture, dust and environmental conditions, while the cast structure offers reliable insulation and mechanical protection. With flexible voltage tapping options, Dyn11 or Yyn0 connection configurations, and multiple capacity options, the SCBH15 is suitable for power distribution systems in commercial buildings, industrial facilities, infrastructure projects and other applications requiring safe and energy-efficient transformer operation.
Share With:
Description
The SCBH15 Dry-type Amorphous Alloy Core Transformer is designed for medium-voltage power distribution where energy efficiency, operational reliability and low maintenance are important. The transformer uses an amorphous alloy core to achieve lower no-load losses compared with conventional transformer designs, helping reduce energy consumption during continuous operation.
The transformer adopts epoxy resin cast insulation technology. The winding insulation structure provides good electrical insulation and mechanical strength, while the cast resin construction helps protect the internal components against moisture, dust and other environmental influences. The product is designed with low partial discharge characteristics and strong resistance to short-circuit mechanical forces.
The SCBH15 is available in rated capacities from 30 kVA to 2500 kVA and supports 6 kV and 10 kV voltage classes with a 0.4 kV low-voltage side. The high-voltage tapping range can be configured as ±5% or ±2 × 2.5%, with Dyn11 or Yyn0 connection groups available according to project requirements.
With its combination of low losses, low noise, dry-type insulation and compact construction, the SCBH15 can be applied in a wide range of power distribution environments, including industrial facilities, commercial buildings, infrastructure projects and other installations requiring reliable medium-voltage power distribution.

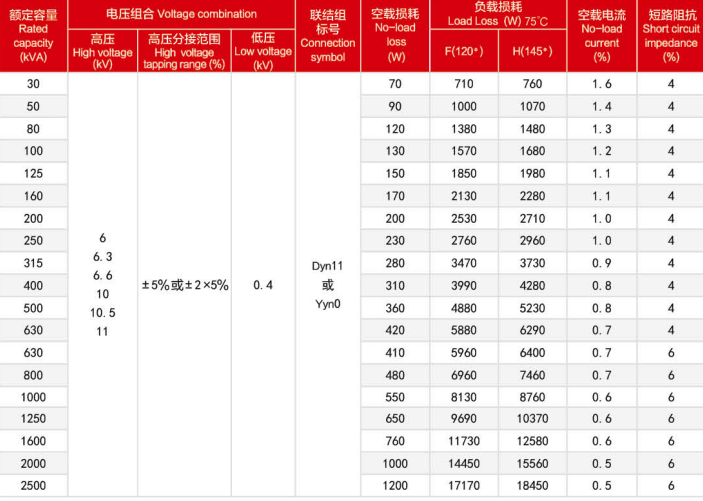

Technical Parameters & Features
Transformer Type
Dry-type Amorphous Alloy Core Distribution Transformer
Rated Capacity
30–2500 kVA
Frequency
50 Hz
Voltage Class
6 kV / 10 kV
Connection Group
Dyn11 / Yyn0
High Voltage
6 kV, 6.3 kV, 6.6 kV, 10.5 kV, 11 kV
High-Voltage Tapping Range
±5% or ±2 × 2.5%
Insulation
Epoxy Resin Cast Insulation
